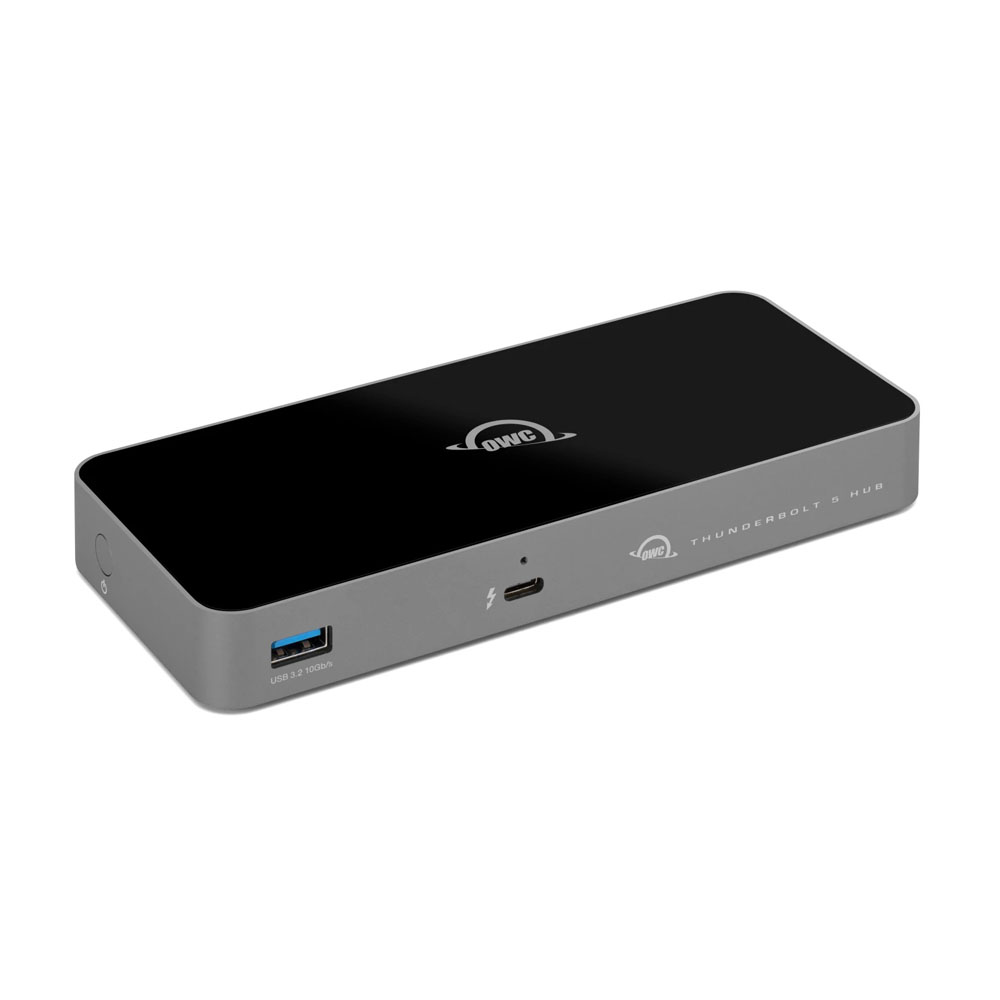

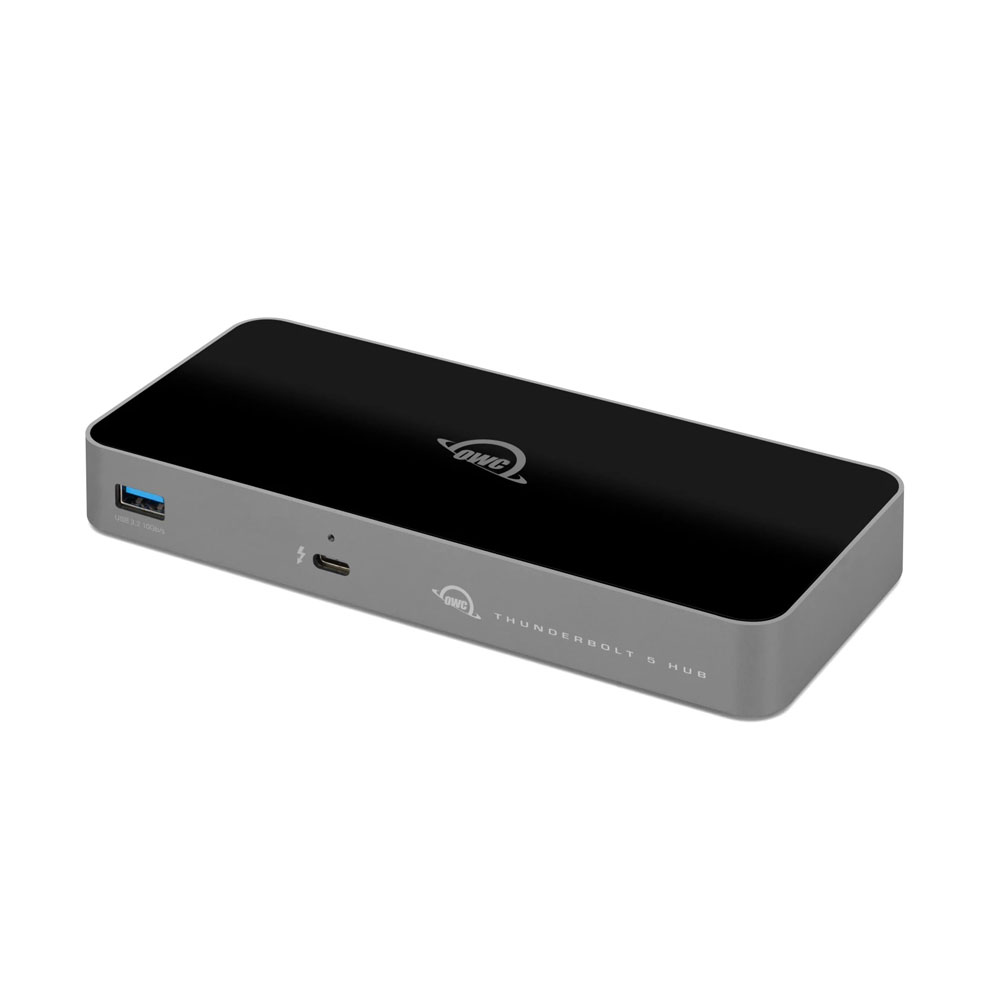

OWC Thunderbolt 5 Hub kết nối Thunderbolt 5 (USB-C) upto 120Gbps, USB 3.2 Gen2 10Gbps

OWC Thunderbolt 5 Hub kết nối Thunderbolt 5 (USB-C) upto 120Gbps, USB 3.2 Gen2 10Gbps

More Pixels and Power Than Ever Before

The OWC Thunderbolt 5 Hub offers more than the fastest bandwidth available to transfer your data and video files. Drive up to three 8K displays² with the OWC Thunderbolt 5 Hub’s Bandwidth Boost technology for up to 120Gb/s – up to 3x faster than Thunderbolt 4 – of intelligent bandwidth allocation for video intensive usage. Send 140W of power delivery to a demanding notebook to keep it powered and ready for mobile use. Quite simply, the OWC Thunderbolt 5 Hub gives you more to do more than ever before.

Thunderbolt 5

Thunderbolt 4

Thunderbolt 3

USB4

USB-C

Built for Speed: Thunderbolt 5 Hub

Thunderbolt 5: 80Gb/s bi-directional data with up to 120Gb/s video stream performance

Thunderbolt 4: 40Gb/s

Thunderbolt 3: 20Gb/s up to 40Gb/s

USB4: 40Gb/s up to 80Gb/s

USB-C: up to 20Gb/s

up to2xfaster than Thunderbolt 4 & USB4

Create A Tablet ProStation

While iPad Pros and other tablet computers offer awesome content creation potential, they’re handcuffed by limited internal storage, display size, and often a single Thunderbolt (USB-C) port. Instead of lugging around a bulky notebook or worse, being chained to a non-portable desktop workstation, capture what you need on the fly with a tablet. Back at a desk, transform that tablet into a “prostation” with an external display, keyboard, mouse, and external drive all connected to the OWC Thunderbolt 5 Hub.

Thunderbolt 5 is REAL

Intel’s Next-Gen Thunderbolt Technology

With 2x the total bandwidth of previous generations, Thunderbolt 5 unlocks the full potential of Apple’s latest M4 Pro and M4 Max chips. Thunderbolt 5 enables drives and hubs that don’t just move data faster, they move more data faster, sending your workflow into a bottleneck-free bliss.

Technical Specs

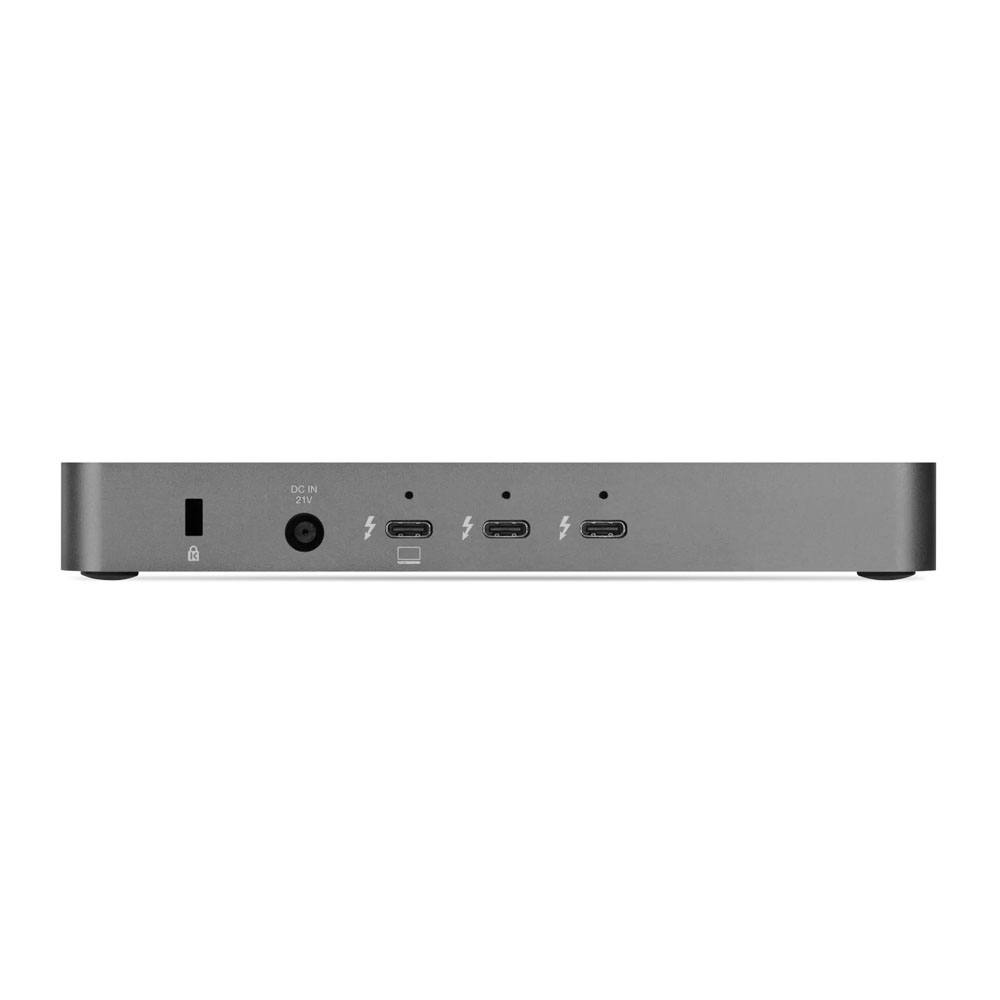

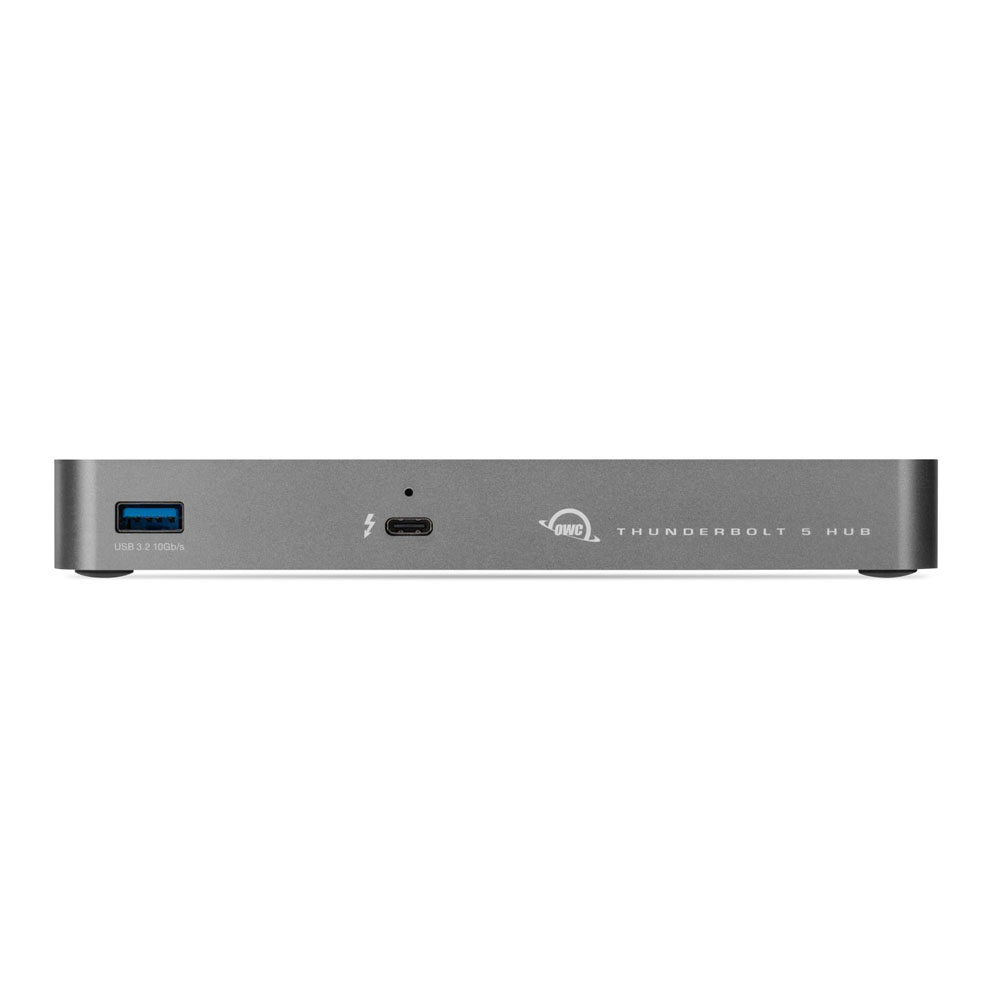

• Device Ports

  • (1) Host Port – Thunderbolt 5 (USB-C) up to 80Gb/s bi-directional data speed and up to 120Gb/s display bandwidth
  • (3) Thunderbolt 5 (USB-C) Ports
  • (1) USB 3.2 Gen 2 Type-A Port up to 10Gb/s (1250MB/s) – USB 2.0/3.0 backwards compatible

  Power Delivery

  • Power delivery supplied to the host system will vary between 140W and 100W based on the power delivery supplied to other devices connected to downstream ports.
  • The host system may not require the full 140W of power delivery and may automatically negotiate a reduced rate based on the needs of the system. Some host systems may limit power delivery to 100W maximum.
  • Thunderbolt 5 device ports (for external drives and other devices) provide 15W of power.
  • USB port provides up to 1.5A of power for bus-powered drives and device charging.

  UASP Support

  • UASP (USB Attached SCSI Protocol) is supported

• Display Support

  • Up to three 8K displays @ 60Hz,
  • or two 8K displays @ 120Hz,
  • or three 4K displays @ 144Hz

  Display Support by Port

  • Thunderbolt 5 up to two 8K @ 120Hz or three 4K @ 144Hz via a native Thunderbolt 5 display or other displays that support USB-C connections and DisplayPort 2.1

• External Power Adapter

  • Yes

  Power Supply

  • External UL-listed universal auto-switching power supply

  AC Input

  • 100-240V, 50/60Hz, 2.5A

  DC Output

  • +21V, 8.58A

  Wattage

  • 180W

• Security Slot

  • Yes

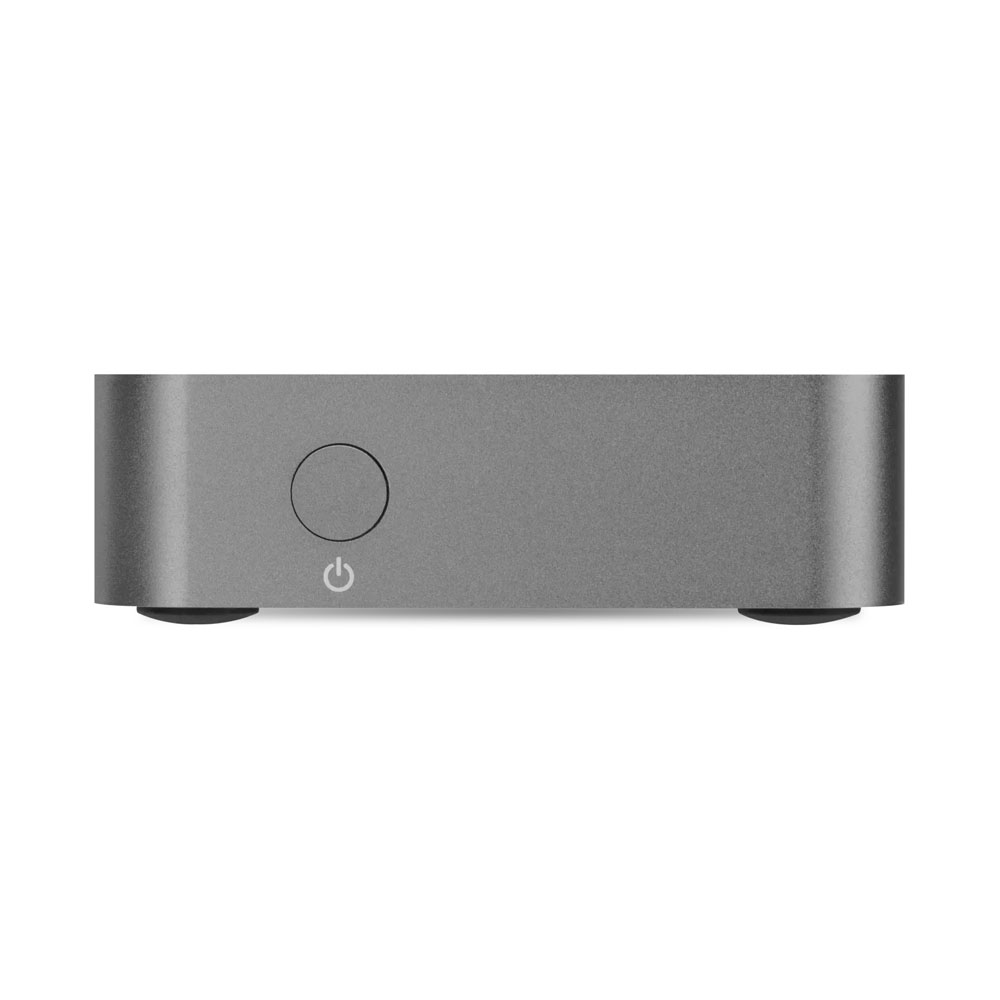

  Power Button

  • Yes

  Housing Color

  • Chassis: Space Gray
  • Covers: Black

  Housing Material

  • Chassis: Aluminum
  • Covers: Polycarbonate

  Dimensions

  • Height: 2.2 cm (0.9 in)
  • Length: 7.8 cm (3.1 in)
  • Width: 17.8 cm (7.0 in)

  Weight

  • 382.0 g (0.84 lbs)

• Certifications

  • CE
  • FCC
  • ICES
  • RCM
  • VCCI
  • UKCA

  RoHS Compliant

  • Yes

  Reach Certification

  • Yes

  UPC

  • 810159628211

• Ambient Temperature

  • Operating: 32°F to 86°F (0°C to 30°C)
  • Non-Operating: -4°F to 140°F (-20°C to 60°C)

  Altitude

  • Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
  • Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)

  Humidity

  • Operating: 8% to 90% non-condensing
  • Non-Operating: 5% to 95% non-condensing
