Front to Back / Back to Front Airflow	400G High Bandwidth	400G ZR/ZR+ Transceiver (max 24W)	24W per Transceiver on Upper 16 Ports	14W per Transceiver on Lower 16 Ports	Resiliency

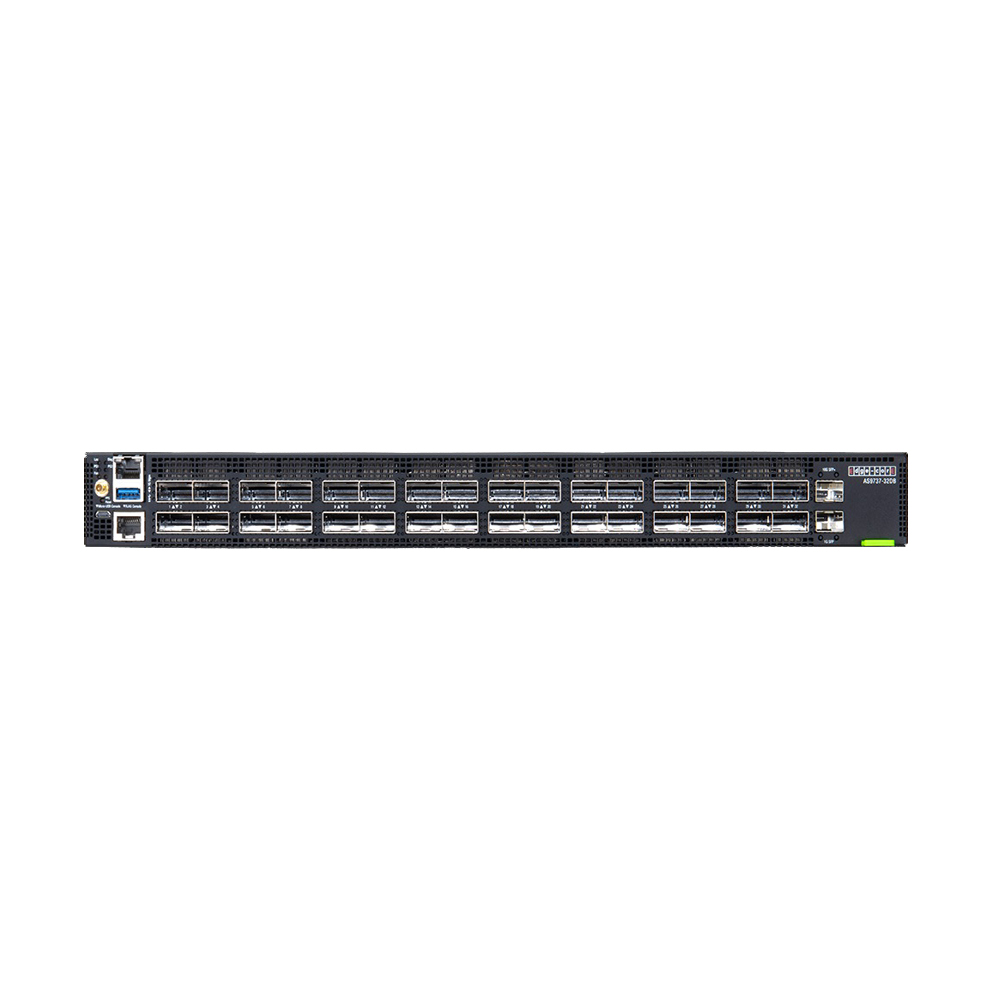

The Edgecore DCS240 is a top of rack or spine switch for high-performance data centers. The switch provides line-rate L2 and L3 switching across the 32 x QSFP56-DD ports, each supporting 1 x 400 GbE or 1 x 100 GbE, or via breakout cables 2 x 200GbE, 4 x 100 GbE, or 4 x 25 GbE. The DCS240 can be deployed as a spine switch supporting 100/400 GbE spine interconnects. This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System soſtware, including the open source options, plus commercial NOS offerings.

Compatible Software Option	Compatible Transceivers	Compatible Cables
IP Infusion – OcNOS SONiC Netscout – Packet Flow Switch	40G QSFP+ 100G QSFP28 400G QSFP-DD 400G QSFP-DD ZB (DCO)	40G QSFP+ DAC 100G QSFP28 DAC 100G QSFP28 AOC 400G QSFP-DD DAC 400G QSFP-DD AOC 400G QSFP-DD to QSFP56 Breakout.
