Edgecore 51.2T Data Center Switch AIS800-64O

Edgecore 51.2T Data Center Switch AIS800-64O - Ảnh 3

Edgecore 51.2T Data Center Switch AIS800-64O - Ảnh 4

Edgecore 51.2T Data Center Switch AIS800-64O

Liên hệ

64 x OSFP800 switch ports with Tomahawk 5.
High-performance, low-latency switch for high-performance data centers

Add to wishlist

Mô tả

The Edgecore AIS800-64O is a high-performance, low-latency switch for high-performance data centers.

Application Scenarios

Spine Switch

A next-generation, highest-capacity switch for data center spine use case. Breakout options include 2 x 400G, 4 x 200G, and 8 x 100G per port, with a maximum of 320 logical ports. Offers reduced cost and power per bit. Scalable and enables migration to 400G leaf connectivity in data centers.

AI/ML Clusters

Standards-based (Ethernet) networking for AI/ML training, leveraging low latency and high-throughput RoCEv2. Reduces Job Completion Time (JCT) using the cognitive routing and congestion management capabilities of the switch. Fully programmable telemetry enables sophisticated on-chip applications for heightened network insight and efficient network management.

High-Performance Computing

The large number of high-capacity Ethernet ports enables server interfaces to transition to higher speeds and denser networks. Enables the virtualization of compute and storage with VxLAN switching and routing.

Cloud DCI

Support 400G QSFP-DD ZR/OpenZR+/+6dBm ZR+ and future proof 800G OSFP ZR/ZR+/+6dBm for cloud DCI scenarios.

Features

OSFP800 or QSFP-DD800 switch ports, each supporting 1 x 800 GbE (100G PAM4), or via breakout cables 2 x 400G GbE, 4 x 200 GbE, or 8 x 100 GbE.
OSFP800 or QSFP-DD800 switch ports also support 1 x 400 GbE (50G PAM4), 1 x 100 GbE (NRZ), and via breakout cables 2 x 200 GbE, 4 x 100 GbE, or 8 x 50 GbE.
Up to 30W power budget per OSFP800 port.
Incorporates Broadcom Tomahawk 5 switch series silicon.
• Highest Radix: Up to 320 logical ports on a single chip, low latency
• Cognitive/Adaptive routing and Dynamic Load Balancing (DLB) and Global Load Balancing (GLB)
• Advanced shared buffering
• Programmable in-band telemetry
• Supports end-to-end congestion control
• Power efficient due to a monolithic 5nm die
• Hardware-based link failover for network resiliency and reduced job completion time
• Support for SRv6
• Support for VxLAN RIOT
BMC module with serial-over-LAN support
SyncE and PTPv2 support with 1PPS, 10MHz, and ToD connectors on the front panel
Contains e-fuses to protect transceivers and internal components
2 RU form factor
Supports hot/cold aisles with front-to-back/AFO/port intake airflow SKU and back-to-front/AFI/port exhaust airflow SKU

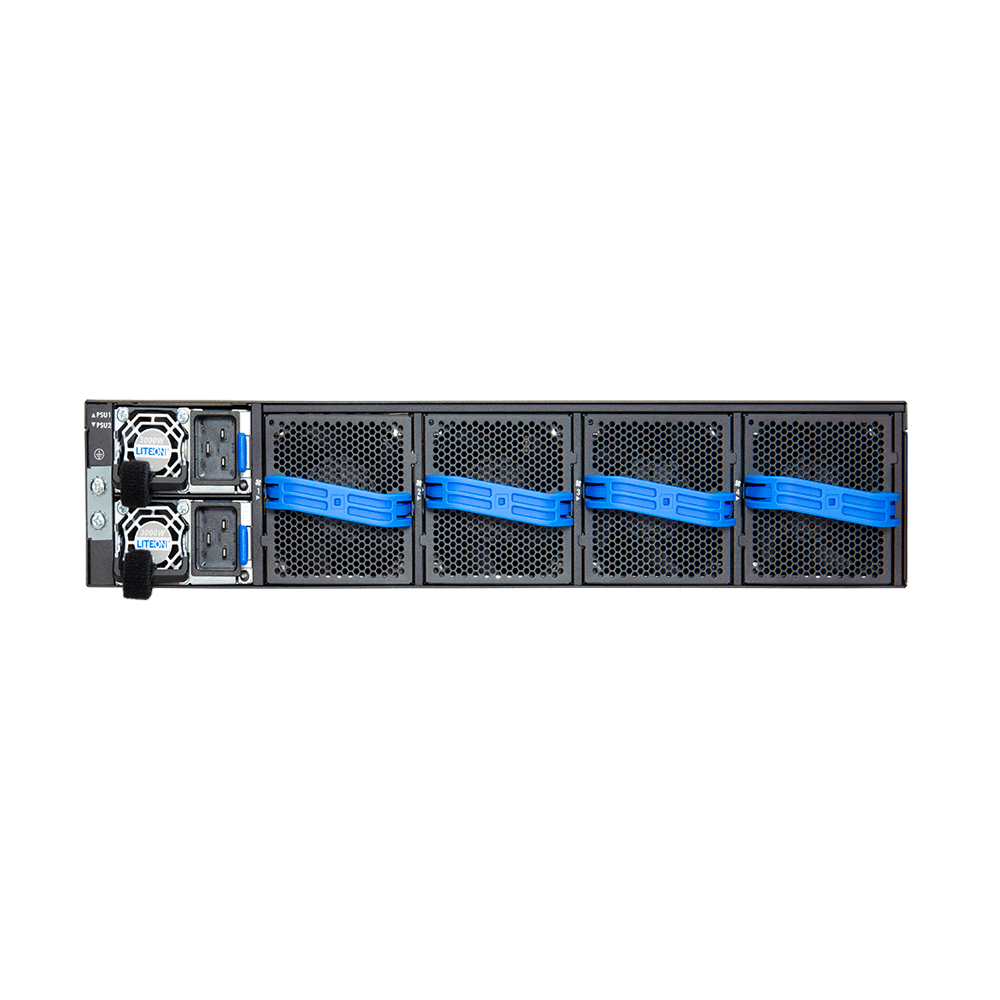

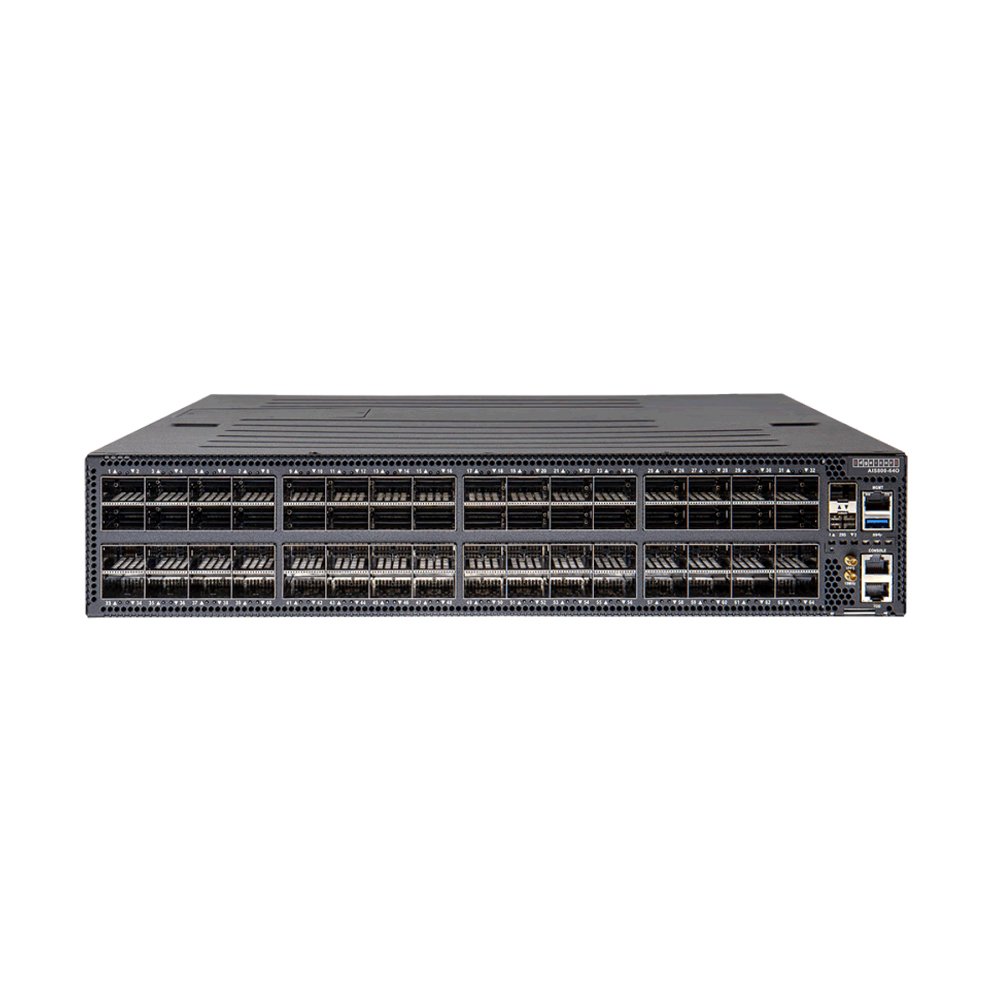

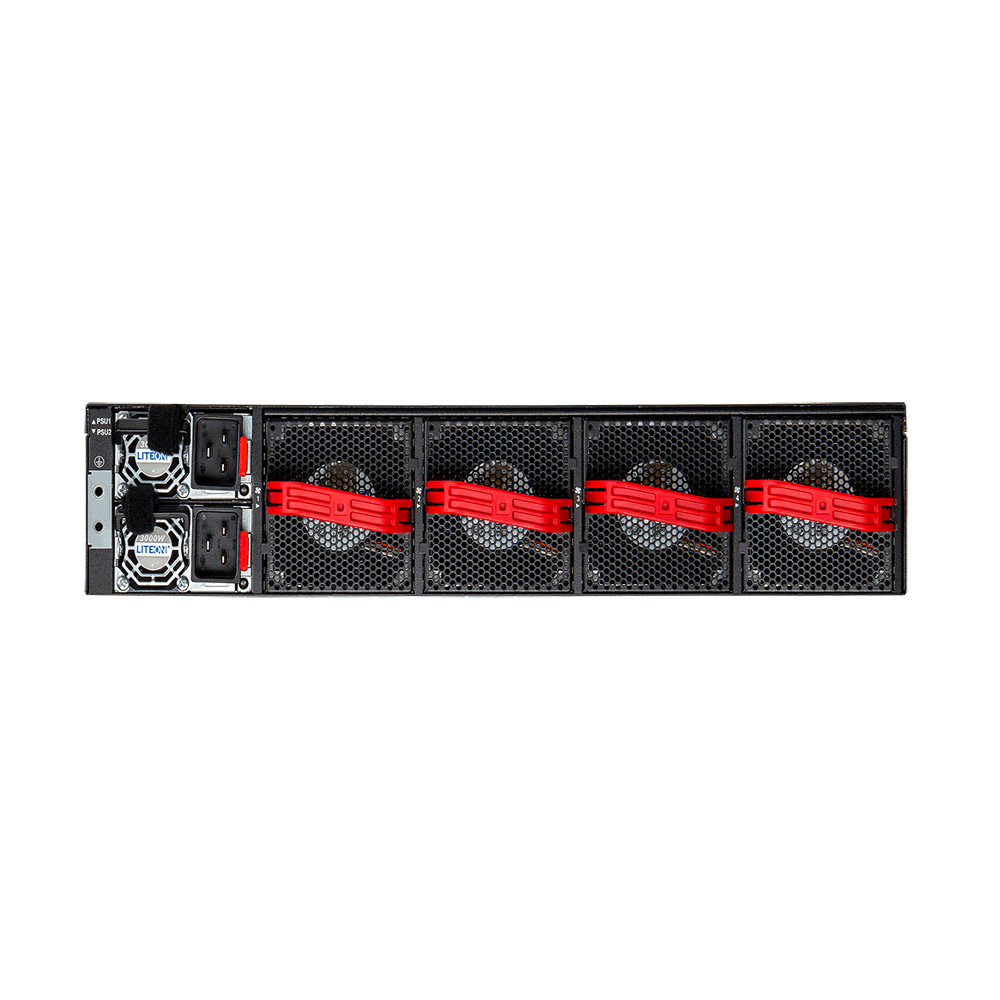

All ports on front; PSUs and fans accessible from rear
Hot-swappable, load-sharing, redundant 3000 W AC/DC PSUs
4 Hot-swappable fan modules with 7+1 redundant fans
Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings
