EXP800-16O 16 x 800G OSFP800 ports, each can breakout to 2x400G, 4x200G or 8x100G
The SerDes supports operation at 10G, 25G, 50G, and 100G rates
High performance, low power, low latency, fully programmable switch, optimized for enterprise, datacenter and AI applications

Add to wishlist

Mô tả

The Edgecore EXP800-16O

It is a high performance, low power, low latency, fully programmable SDN data center switch designed for data center, cloud, and AI networks.

Leaf or ToR switch

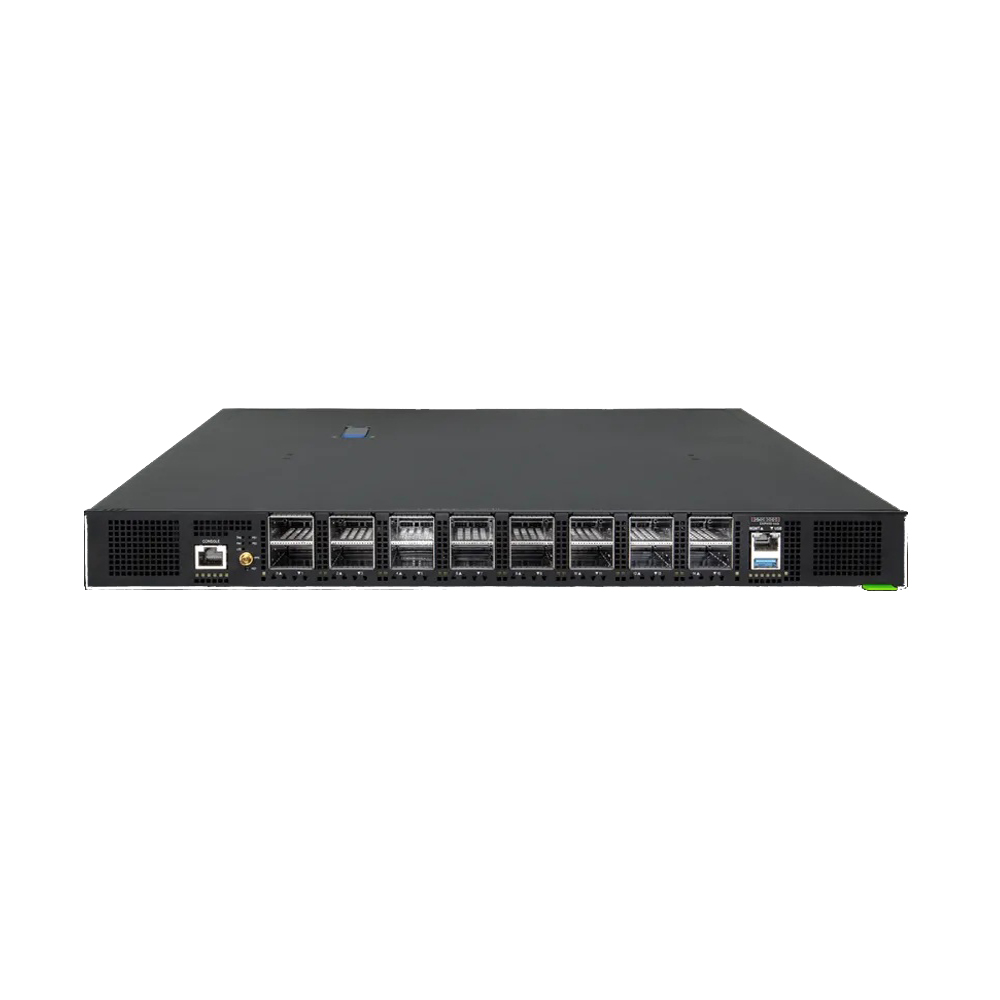

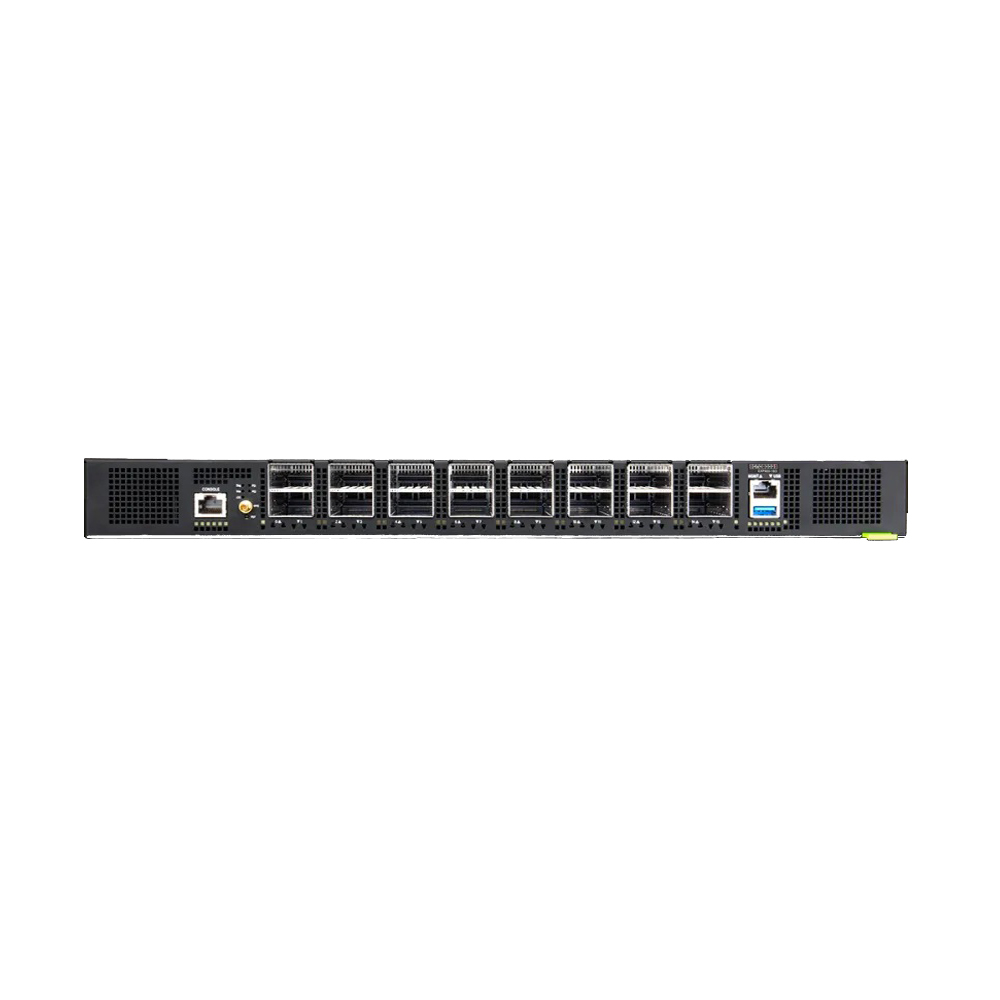

The EXP800-16O is a 16-OSFP800-port switch in a 1RU form factor. Each of the OSFP800 ports can breakout to 2x400G,4x200G or 8x100G, optimizing compute racks by enabling 100Gbps-per-lane server links and 800G uplink optics. The device is an ideal leaf or ToR switch for cloud data center operators that are driving the rapid adoption of 800Gbps optical modules while also upgrading compute server NICs to 400Gbps speeds.

Xsight Instruction Set Architecture (ISA)

The EXP800-16O also supports Xsight Instruction Set Architecture (ISA) for users to define flexible packet processing rules,routing protocols, and network policies. The programmability is also an important underlying capability for many of the advanced features, including queue management, congestion control, and telemetry. The programmability handles newly-defined notification mechanisms, such as the Ultra Ethernet Transport (UET) protocol, packet trimming, and back-to-sender signaling.

Dynamic Load Balancing (DLB)

Optimized for interconnecting AI/ML, storage, and compute clusters in data centers, the EXP800-16O supports congestion-aware routing, which comprises measuring and signaling congestion as well as load balancing across the network fabric. For a given fabric link, the EXP800-16O can measure flow rate, latency, and queue level. When congestion is detected, it can signal using Explicit Congestion Notification (ECN), Congestion Signaling (CSIG), or other customer-defined mechanisms. The EXP800-16O can handle flowlet-based load balancing and packet spraying across fabric links, as well as traditional flow-based approaches like ECMP.

Features

Supports 12.8Tbps full-duplex throughput
Supports 100Gbps PAM4 LR SerDes with a retimer-less design
The 16 OSFP800 ports can breakout to 2 x 400G, 4 x 200G or 8 x 100G
UEC-ready programmable congestion measurement and signaling to facilitate dynamic load balancing and fast failure detection and recovery
UEC-ready weighted congestion-aware dynamic load balancing for reducing tail latency
Support front to back airflow; PSUs and fans redundancy
Preloaded with ONIE, supports Xsight OS and Community SONiC
Fully Programmable

Specifications

Switch Ports	16 x OSFP800
Switch Silicon	Xsight Labs X2
Processor	Intel® Xeon® D-1713NTE 4-Core 2.2GHz
BMC	Optional
Memory	32GB DDR4 SO-DIMM with ECC
Storage	1TB m.2 2280 NVMe SSD
Latency	755 ns
Rack	1RU form factor

Timing and Sync	Optional

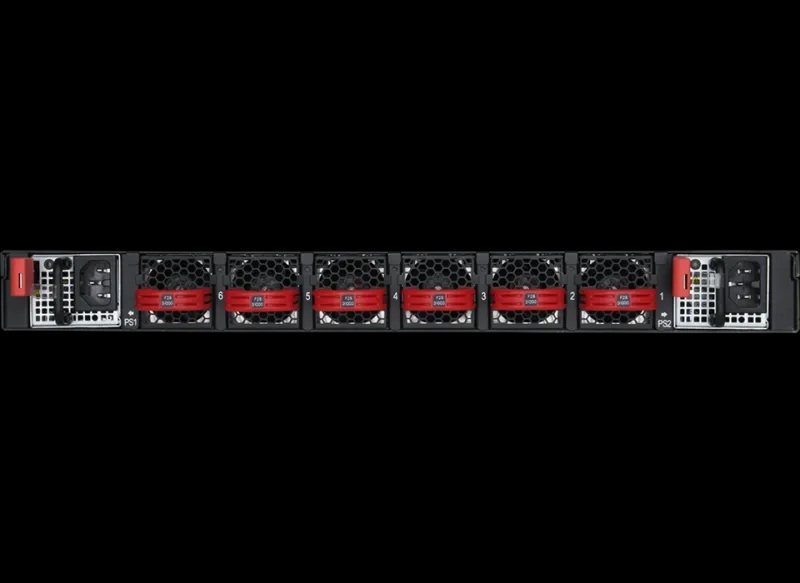

Fans	5+1 hot-swappable redundant fans front to back or back to front
Storage Temperature	-40°C to 70°C
Operating Temperature	0° C ~ 40° C
PSU	1+1 redundant, load-sharing, hot-swappable AC PSUs
Power Draw	Maximum 863W
