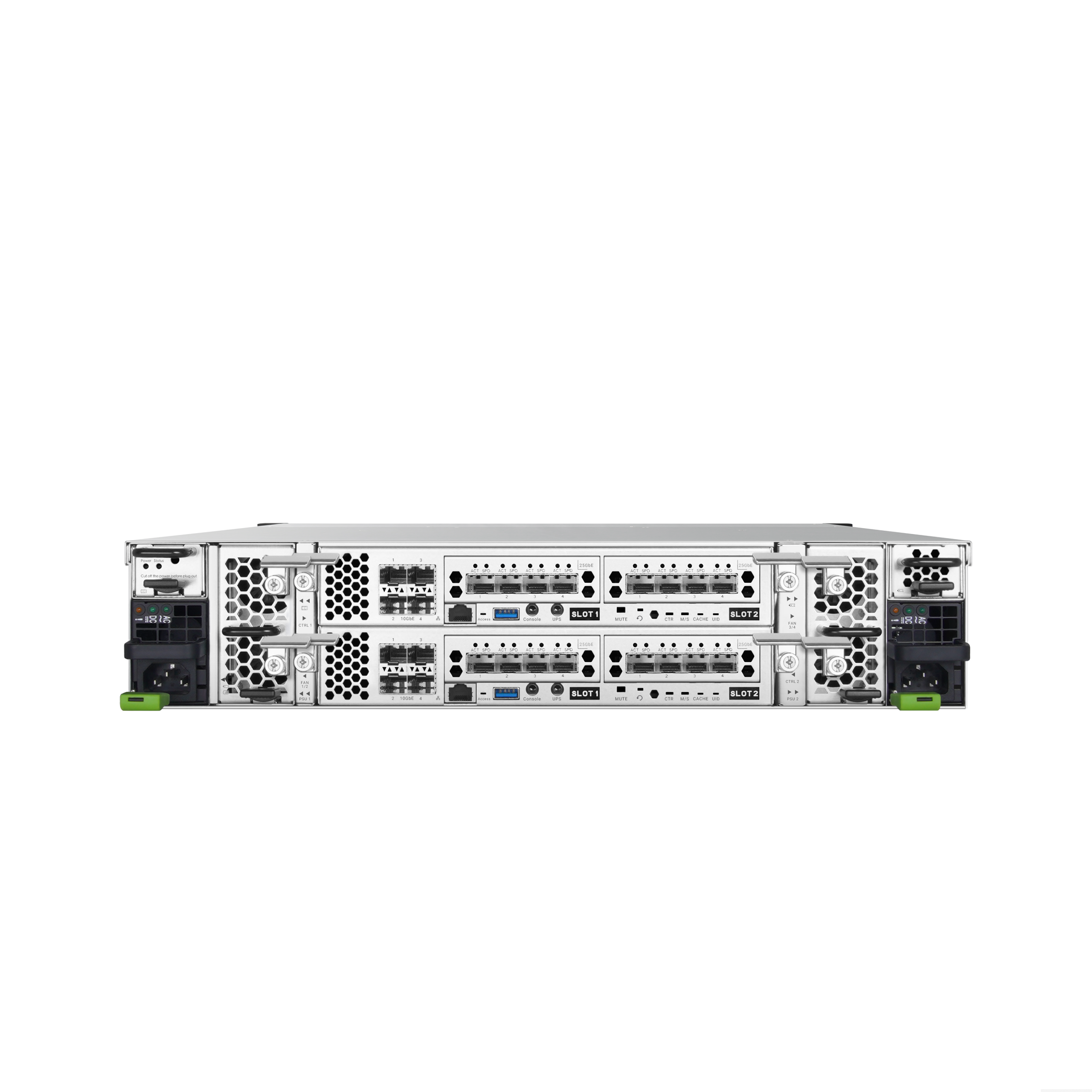

QSAN Unified Storage XN3212D-4C

Powerful Performance with Optimized Cost

QSAN XN3 series is a cost-effective NVMe flash storage solution with the best balance of performance and cost. With μs-level latency, the XN3 assists enterprises in meeting the responsiveness needs of most enterprise applications. The XN3 is ideal for modern applications including cloud collaboration, large scale surveillance, and high-speed business backup alike.

Accelerate Your Business with µs-Level Latency

The XN3 series features an NVMe SSD architecture designed to ensure consistent response times, prioritizing steady performance instead of occasional peak throughput. Tailored for enterprise high-performance computing infrastructures, it delivers high IOPS with latency at the microsecond level. With minimal latency concerns, applications are shielded from slowdowns or halts caused by high response times. Matching with the RDMA technology, XN3 can mostly eliminate the latency when accessing data from the host to the drive.

Always-on for Business

XN3 is equipped with hot-swappable and fully redundant hardware design, streamlining maintenance and upgrades. Its dual active controllers operate, and online firmware upgrades deliver seamless storage services in real-time, guaranteeing uninterrupted service delivery with zero downtime.

Sweatless Management Experience

QSM continuously evolves security levels to protect data across storage and adhere to industry best practices. Supporting SED (Self-Encrypting Drives) coupled with WORM (Write Once Read Many) will keep your sensitive data safe even if the drives are lost, stolen, or misplaced. Additionally, Windows ACL (Access Control List) and RBAC (Role-Based Access Control) help to prevent unauthorized access to your data.

Reduce Business Overhead through Data Reduction

Equipped with advanced data reduction capabilities, including deduplication and compression, the XN3 offers unparalleled efficiency, allowing businesses to significantly reduce overhead costs.

Key Benefits

Unparalleled Performance

• Onboard 10 GbE LAN port and flexible highspeed I/O expansion

Enterprise Reliability

• 9999% high availability with overall modular design performs no single point of failure
• Never lose any data at cache-to-flash memory protection solution
• Non-disruptive firmware upgrade and backup appliance reach zero downtime

Effortless Management

• Simplify the steps of upgrading and replacing system components with modular hardware design
• QSM – the operation system for flash storage reduces learning and maintenance efforts through our innovative interface design
• Support RESTful API, SNMP, and emailing for external management or use QSAN XInsight, smarter data management with simplified platform and intelligent engine

System Specification



Model Name	XN3212D-4C	XN3212S-4C
Architecture	Dual-active controller	Single-upgradable controller
CPU
Processor	Intel® Xeon® 4-core x 2	Intel® Xeon® 4-core
Memory
Memory Module Pre-installed	16 GB DDR4 RDIMM	8 GB DDR4 RDIMM
Total Memory Slots	8	4
Memory Expandable up to	512 GB	256 GB
Storage
Drive Bays	3.5″ Slot x 12
Maximum Drive Bays with Expansion Unit	116
Compatible Drive Type	2.5″ dual-port U.2 NVMe SSD (for internal & JBOF)	2.5″ single-port U.2 NVMe SSD (for internal & JBOF)
Drive Interface	U.2 NVMe (PCIe Gen 4)
Maximum Internal Raw Capacity	737 TB
Maximum Raw Capacity with Expansion	7,127 TB
Hot Swappable Drive	Yes
Connectivity Port
PCIe Expansion	(Gen 3×8 Slot) x 4	(Gen 3×8 Slot) x 2
2.5 GbE RJ45 LAN Port	2 (onboard)	1 (onboard)
10 GbE SFP+ LAN Port	8 (onboard) / 2 (option) / 4 (option)	4 (onboard) / 2 (option) / 4 (option)
10 GbE RJ45 LAN Port	2 (option) / 4 (option)
25 GbE SFP28 LAN Port	2 (option) / 4 (option)
100 GbE QSFP LAN Port	2 (option)
16 Gb SFP+ Fibre Channel	2 (option) / 4 (option)
32 Gb SFP28 Fibre Channel	2 (option) / 4 (option)
Expansion and External Port
10 / 25 / 100 GbE LAN Port to JBOF	Up to 4 JBOF
USB Port	1 (front) / 2 (rear)	1 (front) / 1 (rear)
Others	Console Port x 2, Service Port x 2	Console Port x 1, Service Port x 1
Software Specification
Storage OS	QSM 4
RAID Type	0 / 1 / 5 / 6 / 10 / 50 / 60 / 5EE / 6EE / 50EE / 60EE
Storage Efficiency	Thin provisioning / Compression and Deduplication (option)
Software Acceleration	SSD cache / Auto tiering / RDMA
Data Protection	Snapshot / Asynchronous / Synchronous (option)
Backup Service	Rsync / S3 backup / Cloud backup / XMirror / Microsoft 365 email backup
Security	SSL / SSH / iSCSI CHAP / ISE & SED / WORM / RBAC / Windows ACL / Antivirus
Support Protocols	CIFS / NFS / FTP / WebDAV / iSCSI / FCP / NVMe-oF
Management	Web UI / Window AD / LDAP / RESTful API / S.E.S. / LCM
Appearance
Dimension (H x W x D) (mm)	88 x 438 x 515
Net Weight (kg)	16.3
Gross Weight (kg)	18.6
Others
Memory Protection	Cache-to-Flash Module (option)
System Fan	4 pcs
Power Supply Unit	850 W x 2 (80 Plus Platinum)
Power Input	100 – 240 VAC, 50/60 Hz
Power Consumption	407 W / 1,389 BTU
Certification	CE / FCC / BSMI
Standard Warranty	System: 3 years Cache-to-Flash Module: 1 year
